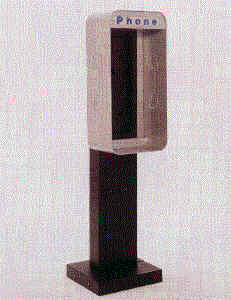

Enclosure
Model Q1

Products -> Enclosures

Size Diagram

 Features:
  • Universal Mounting
  • .160"Thick All Aluminum Housing
  • Punched Handset on Sides
  • Lexan Lens with Channel Support for Easy Replacement
  • Lighted "PHONE" Signage with Blue Lettering
  • Meets UL Specifications
  • Fully Assembled
  • Available in Silver Anodized or Powder Coat Blue
  • Pedestal Features for Q1 listed below

    • Pedestal Features:

  • Universal Base
  • Tamper Resistant Screws
  • 10 Gauge Pedestal Base and Phone Mounting Board
  • Adjustable Base Covers for Uneven Surfaces
  • Leveling Bolts
  • Meets ADA & ANSI Standards
  • Extra Knock-Outs in Base
  • Universal Mounting
  • Wiring Channels in Pedestal
  • 14 Gauge Steel Pedestal
  • Zinc-Plated w/ Black Powder Coat Finish
  • Walk-up, Drive-up or Wall Mount Configurations Available
  • Indoor / Outdoor Applications
  • All Aluminum Available
  • One Year Warranty

    • Datasheets (click on smaller picture to view a larger one):

    Datasheet - Front Datasheet - Back
